CG-Series Hot Chamber Die Casting Machine
User-Friendly
Easy-to-use interactive system
High-Performance
Up to 40% with innovative hydraulic.
Advanced Technology
Intelligent real-time control system
Durable & Reliable
Long-lasting Operational Lifespan
Hot Chamber Die Casting Technical features
- die casting machine hot chamber Maximum air injection speed ≥ 6m/s.
- First and second platen adopt box board or reinforced plate structure.
- High stiffness and light weight.
- Computer controller is separated from the machine, independent landing, to avoid the vibration of the host.
- Hydraulic mold adjustment to ensure precision for position control, reaching 0.1mm.
- Newest colorful computer control, stores up to 150 sets of mold data, auto alarm when problems occur, easy for maintenance and repair.
- Fast mold locking function, effectively reducing the production cycle.
- Auto lubrication system for increased reliability.
- Innovative hydraulic spare parts that are reliable and durable.

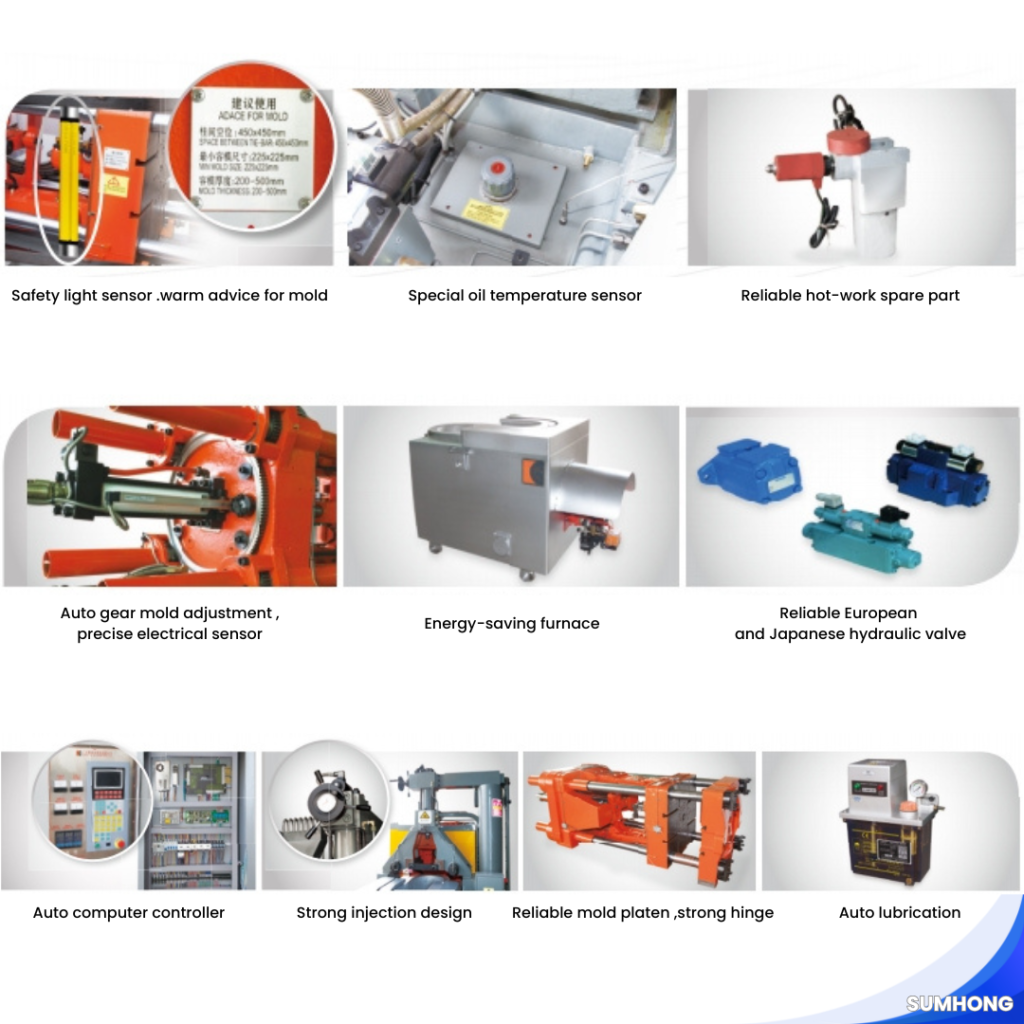

Performance Advantages
- Special oil temperature sensor ensures stable and low temperature control for longer spare part lifespan.
- Advanced and highly effective hydraulic circuit for injection and proportional flow rate control is adopted.
- Strong locking, injection, and ejection force ensure casting products are solid and dense.
- Proportional hydraulic design allows any speed and pressure to be adjusted freely to achieve optimal performance.
- Low-pressure stage mold locking protection function safeguards mold platens and the mold.
- Safety door equipped with a light sensor for enhanced safety.
- Patented furnace with no chimney, achieving energy savings of over 30%.

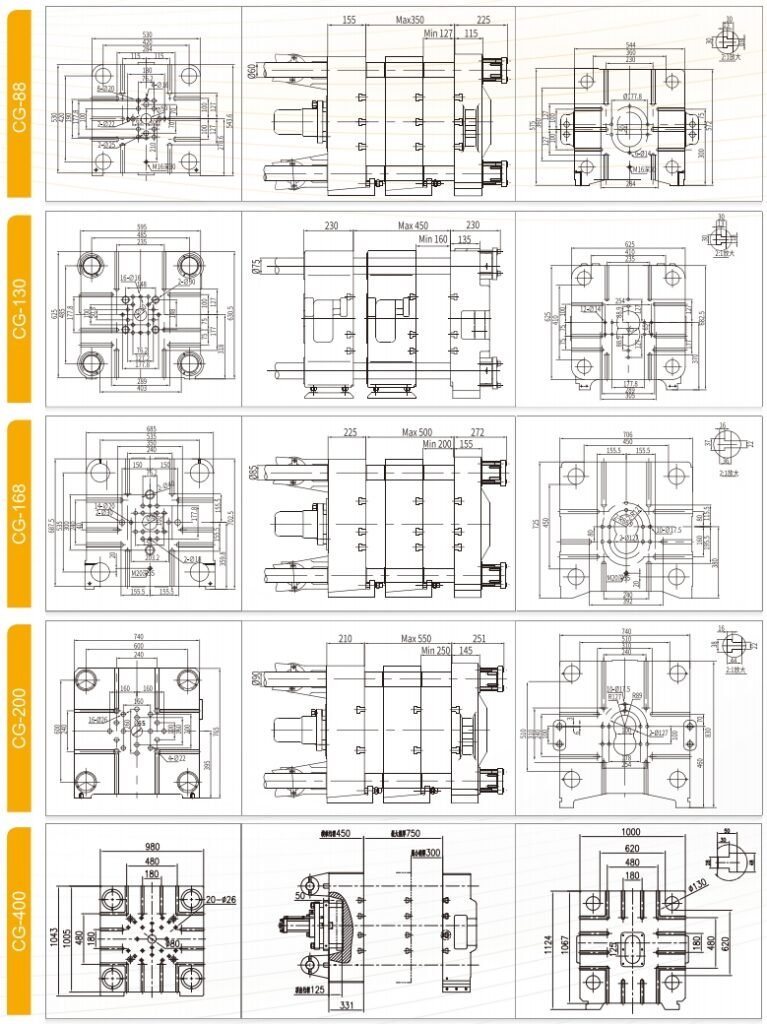

Mold Platen Layout

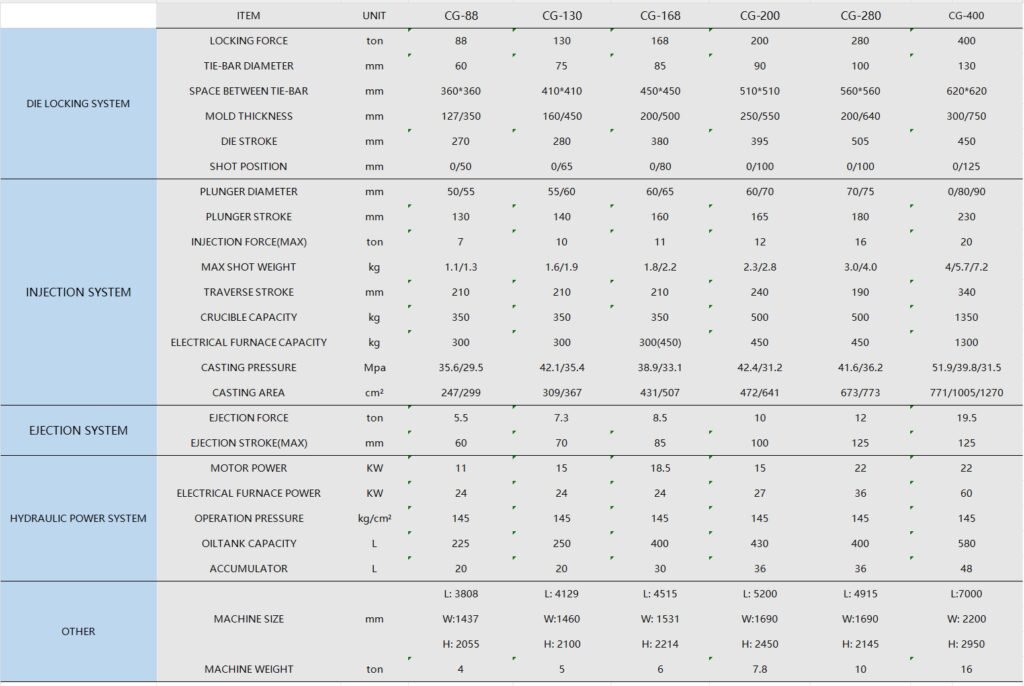

Specification
