Crucible Electric Melting Insulation Furnace(Electric Melting Furnace)
Electric Melting Furnace is designed for efficient melting and heat preservation of aluminum alloys. Ideal for use as a side furnace for die casting machines, it can also serve as a small-scale zinc alloy centralized melting furnace.
Electric Melting Furnace Main Features
- Electric Heating: Utilizes electricity with imported heating elements, providing a safe, eco-friendly solution that meets European WEB environmental standards for production equipment.
- Energy Efficiency: Approximately 40% more energy-efficient than diesel furnaces, resulting in low operating costs and high thermal efficiency.
- Durable Crucible: Includes an imported graphite crucible with special materials for extended service life.
- Reliable Control System: Features both imported and domestic electrical components for stable, reliable performance with low failure rates and high automation.
- PID Control: The PID system automatically adjusts power output based on needs, maximizing energy savings.
- Precise Temperature Control: Maintains aluminum water temperature with an accuracy of ±5°C, ensuring high product quality and reduced scrap rates.
- Accurate Temperature Measurement: Uses ceramic-sheathed thermocouples for precise temperature measurement and long-lasting performance.
- Advanced Insulation: Built with high-quality thermal insulation materials, providing rapid heating and excellent heat retention.
Electric Melting Furnace Technical Specifications
- Wall Temperature: The furnace wall temperature does not exceed 60°C after 48 hours of normal use.
- Electricity Consumption: After normal melting, the electricity consumption is 0.45 kWh per kilogram of material, with a melting capacity of 100-200 kilograms per hour.
- Heating Time: Takes approximately 3 hours to reach an aluminum temperature of 680°C from start-up.
- Insulation Power Consumption: Covering the furnace, normal insulation requires 15 to 18 kWh per hour.

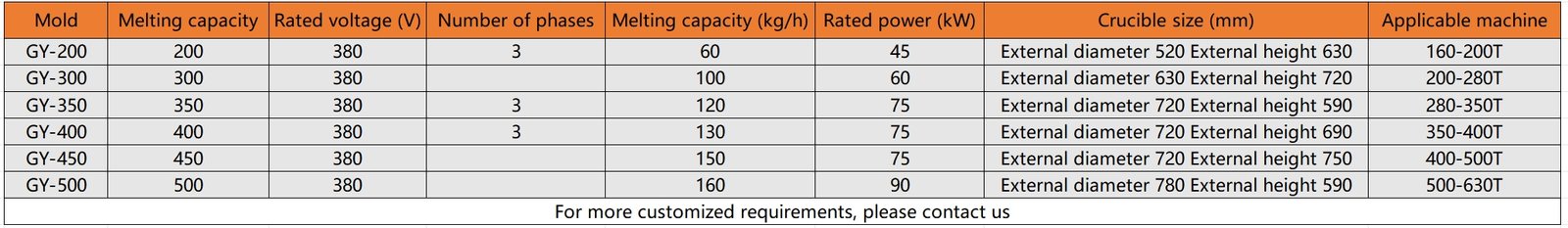

Equipment parameters
